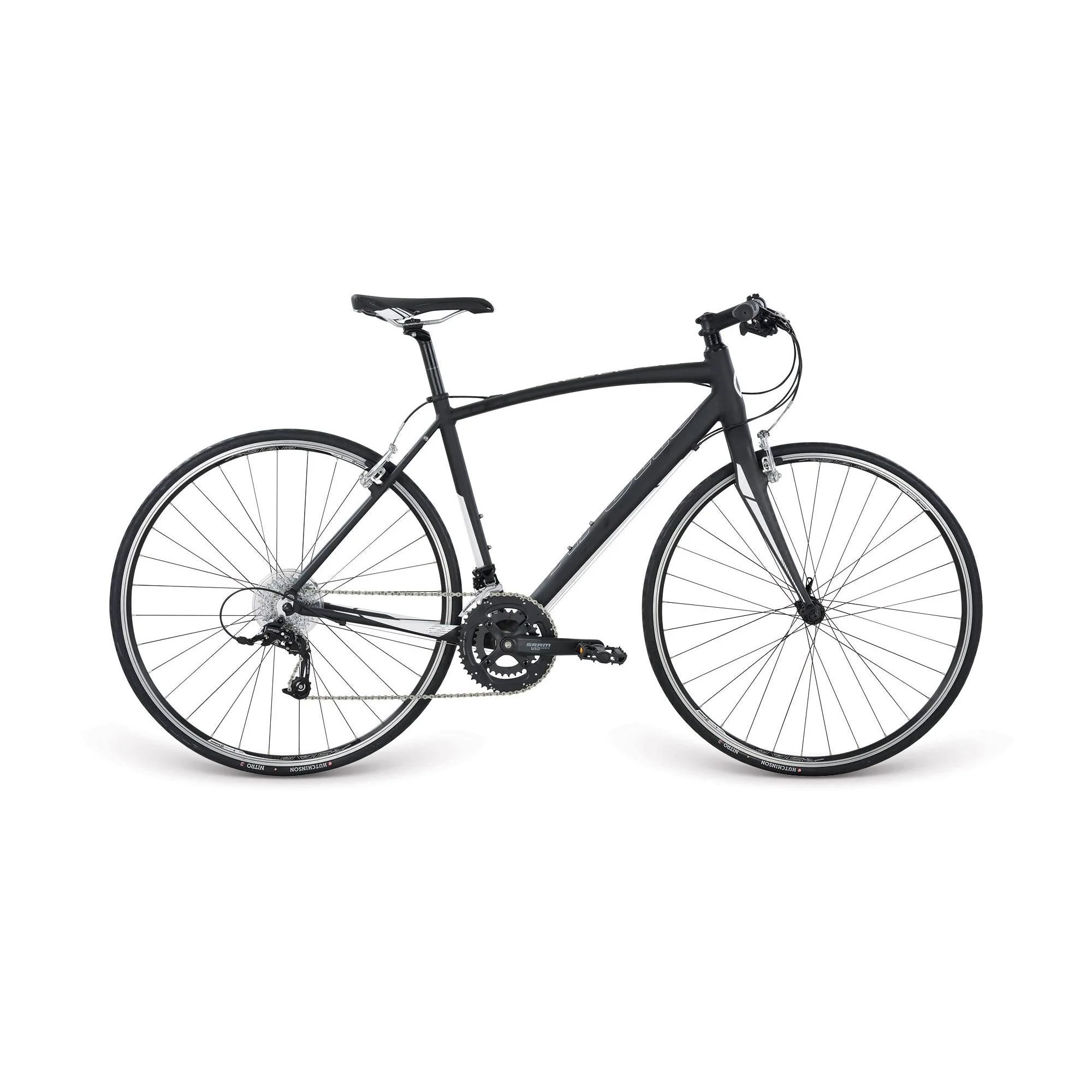

Apollo Exceed 30 Flat Bar Road Bike Black/White (2017)

Apollo Exceed 30 Flat Bar Road Bike Black/White (2017)

SPECIFICATIONS:

FRAME Triple butted 6061 smooth welded triple butted superlite aluminium frame with integrated head tube, pannier mounts and replaceable forged derailleur hanger
FORK Carbon 12k weave composite fork with straight blades, alloy steerer/crown 1-1/8" integrated with rack and fender mounts
REAR SHOCK
HEADSET A-head semi integrated 1-1/8" with 10mm cone spacer
HANDLEBAR Alloy double butted flat bar, bore: 31.8mm, W: 620mm, sweep: 5°
GRIP Kraton ERGO comfort grip
HEADSTEM Factor 4 bolt 3D forged alloy stem, bore: 31.8mm, L: S=90mm, M/L=100mm, XL=110mm
CRANKSET SRAM Via Centro 48 x 32T L: S/M=170mm, L/XL=175mm
BOTTOM BRACKET SRAM power spline bottom bracket
PEDALS Low profile high impact resin
F.DERAILLEUR SRAM Via Centro high clamp 2 x 10
R.DERAILLEUR SRAM Apex mid cage 10 speed
SHIFT LEVERS SRAM Via Centro 20 speed flat bar shifters
FREEWHEEL SRAM 10 speed cassette 11 - 28T
CHAIN KMC X-10
BRAKES Mini alloy linear pull calipers
WHEELS Custom Weinmann X Star 18 32 hole double wall F/V rims, alloy hubs and stainless spokes.
TYRES Hutchinson Nitro 2 700 x 28c 27tpi wire bead
SADDLE Factor road saddle
SEATPOST / CLAMP Factor alloy 27.2mm twin bolt micro adjust
EXTRAS
COLOURS Matte Black / Gloss White

GEOMETRY:

  S M L XL
STACK 555 576 595 616
REACH 396 409 418 427
EFFECTIVE TOP TUBE LENGTH 555 580 600 615
SEAT TUBE (CENTRE TO TOP) 450 500 530 560
SEAT ANGLE 74.0° 73.5° 73.0° 73.0°
HEAD TUBE LENGTH 130 150 170 190
HEAD ANGLE 72.0° 72.5° 72.5° 73.0°
WHEEL BASE 1025 1040 1055 1075
CHAIN STAY LENGTH 430 430 430 430
BB DROP 70 70 70 70
FORK RAKE 45 45 45 45
AXLE TO CROWN 397 397 397 397
REAR DROPOUT SPACING 130 130 130 130
$139.75

Original: $399.28

-65%
Apollo Exceed 30 Flat Bar Road Bike Black/White (2017)—

$399.28

$139.75
Product image 1

Description

SPECIFICATIONS:

FRAME Triple butted 6061 smooth welded triple butted superlite aluminium frame with integrated head tube, pannier mounts and replaceable forged derailleur hanger
FORK Carbon 12k weave composite fork with straight blades, alloy steerer/crown 1-1/8" integrated with rack and fender mounts
REAR SHOCK
HEADSET A-head semi integrated 1-1/8" with 10mm cone spacer
HANDLEBAR Alloy double butted flat bar, bore: 31.8mm, W: 620mm, sweep: 5°
GRIP Kraton ERGO comfort grip
HEADSTEM Factor 4 bolt 3D forged alloy stem, bore: 31.8mm, L: S=90mm, M/L=100mm, XL=110mm
CRANKSET SRAM Via Centro 48 x 32T L: S/M=170mm, L/XL=175mm
BOTTOM BRACKET SRAM power spline bottom bracket
PEDALS Low profile high impact resin
F.DERAILLEUR SRAM Via Centro high clamp 2 x 10
R.DERAILLEUR SRAM Apex mid cage 10 speed
SHIFT LEVERS SRAM Via Centro 20 speed flat bar shifters
FREEWHEEL SRAM 10 speed cassette 11 - 28T
CHAIN KMC X-10
BRAKES Mini alloy linear pull calipers
WHEELS Custom Weinmann X Star 18 32 hole double wall F/V rims, alloy hubs and stainless spokes.
TYRES Hutchinson Nitro 2 700 x 28c 27tpi wire bead
SADDLE Factor road saddle
SEATPOST / CLAMP Factor alloy 27.2mm twin bolt micro adjust
EXTRAS
COLOURS Matte Black / Gloss White

GEOMETRY:

  S M L XL
STACK 555 576 595 616
REACH 396 409 418 427
EFFECTIVE TOP TUBE LENGTH 555 580 600 615
SEAT TUBE (CENTRE TO TOP) 450 500 530 560
SEAT ANGLE 74.0° 73.5° 73.0° 73.0°
HEAD TUBE LENGTH 130 150 170 190
HEAD ANGLE 72.0° 72.5° 72.5° 73.0°
WHEEL BASE 1025 1040 1055 1075
CHAIN STAY LENGTH 430 430 430 430
BB DROP 70 70 70 70
FORK RAKE 45 45 45 45
AXLE TO CROWN 397 397 397 397
REAR DROPOUT SPACING 130 130 130 130
